What Is a PTAC Unit? Packaged Terminal AC Explained

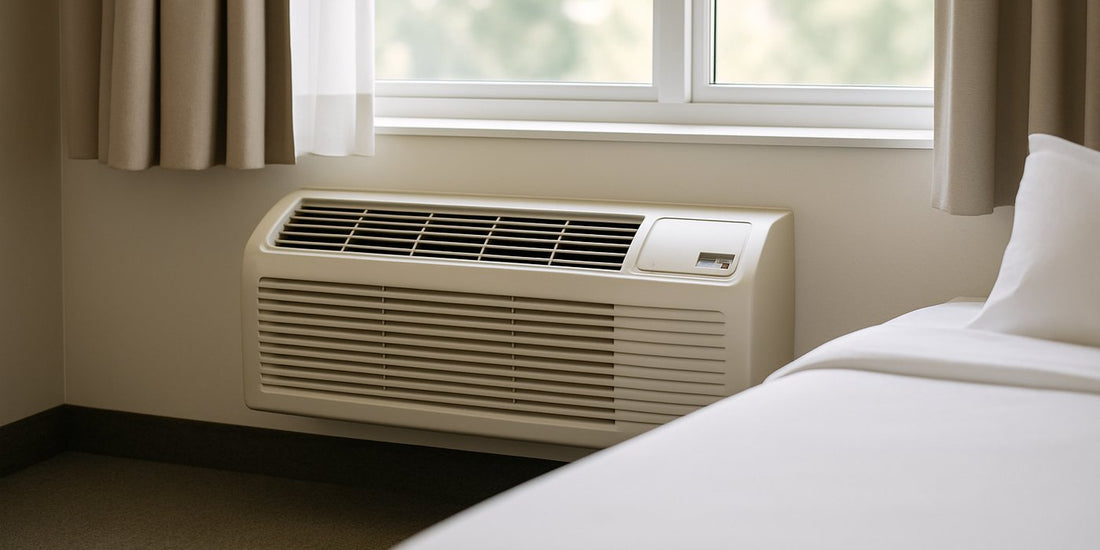

A packaged terminal air conditioner (PTAC) is a self-contained heating and cooling unit that sits in a metal sleeve through an exterior wall, with the indoor and outdoor sides built into one chassis. It cools with a refrigerant cycle like any air conditioner and usually heats with an electric heating element or, in heat pump models, by running that cycle in reverse. PTACs are the boxes under the window in most hotel rooms, and they are also common in apartments, dorms, senior living and hospital rooms.

This guide explains how a PTAC works, how it compares with through-the-wall units, window units and mini splits, and how to run many of them efficiently. For a one-line definition, see the Sensibo HVAC glossary.

What Is a PTAC Unit?

The US Department of Energy defines a packaged terminal air conditioner as a wall sleeve plus a separate, unencased combination of heating and cooling assemblies, intended to be mounted through a wall. In practice that means three parts:

• The wall sleeve: a metal box built into the wall opening. It stays in place for decades and holds the unit.
• The chassis: the removable unit containing the compressor, both coils, fans and controls. This is what you replace when a PTAC fails.
• The outdoor grille: a louvered panel on the outside face of the sleeve that lets the unit take in and reject air.

Most PTACs in North America use a standard sleeve about 42 inches wide and 16 inches high. That standard is why one manufacturer's chassis can often replace another's without rebuilding the wall.

Typical cooling capacities run from about 7,000 to 15,000 BTU per hour, enough for a single room or studio.

How Does a PTAC Unit Work?

A PTAC is a complete air conditioner split across one wall. The indoor half draws in room air, passes it over a cold evaporator coil and blows it back out through the top or front vent. The compressor pumps the heat it picked up to the outdoor coil, where a second fan pushes it out through the grille.

How a PTAC Heats

For heating, there are two common designs:

• Electric resistance heat: a heating element (often sized at around 2.5, 3.5 or 5 kW) warms the air directly. Simple, but expensive to run.
• Packaged terminal heat pump (PTHP): the refrigerant cycle reverses to pull heat from outdoor air. It uses far less electricity in mild weather and usually switches to a backup element when it gets too cold outside.

Some buildings use PTACs with hot water or steam coils fed by a central boiler, but electric and heat pump units are the most common.

Condensate and Drainage

Cooling also removes moisture. Many PTACs throw that condensate onto the hot outdoor coil, where it evaporates, but most manufacturers offer a drain kit and some installations need one to stop water dripping down the facade.

Where Are PTACs Used?

• Hotels and motels: each room gets its own control, a failed unit affects one room, and a spare chassis can be swapped in quickly.
• Apartments and condos: especially older buildings without ductwork, where each unit can be metered to the tenant's electricity bill.
• Dorms and student housing.
• Senior living and assisted living: residents can adjust their own room without affecting neighbours.
• Hospitals, offices and add-on rooms where extending central HVAC would be costly.

PTAC vs Through-the-Wall AC vs Window Unit vs Mini Split

These four are often confused because all of them condition a single room. The table summarises the practical differences; details follow.

PTAC vs Through-the-Wall Air Conditioner

Both live in a wall sleeve, which is why the terms get mixed up. The differences are that a through-the-wall AC is a residential room air conditioner: it uses a smaller, brand-specific sleeve, discharges heat straight out the back, often runs on a regular 115 V outlet, and may be cooling only.

A PTAC is a commercial product with a standard sleeve, side intake and exhaust at the grille, higher-voltage power and heat built in. A through-the-wall unit is not a drop-in replacement for a PTAC, or vice versa, without changing the sleeve.

We have a separate guide to through-the-wall air conditioners if that is the unit you have.

PTAC vs Window Unit

A window unit needs no wall work and costs less, but it blocks the window, is easier to remove or steal, and rarely heats well. In hotels and rentals, a PTAC looks tidier and gives guests heat and cooling from one control.

PTAC vs Mini Split

A ductless mini split moves the compressor outside, so it is quieter indoors and generally more efficient, especially for heating. The trade-offs are a higher installed cost, a licensed installer for the refrigerant lines, outdoor space for condensers and a longer repair when something fails.

Many hotel owners stay with PTACs because a broken chassis can be swapped by maintenance staff in minutes and the room goes back on sale the same day.

How to Size a PTAC

For cooling, a common starting point for room air conditioners is about 20 BTU per hour for each square foot, so a 400 sq ft room lands near 8,000-9,000 BTU. Adjust upward for strong sun, high ceilings, kitchens or many occupants.

For heating in cold climates, check the heat strip size in kW too, because the cooling rating says nothing about how well the unit heats.

Electrical matters as much as BTUs: the plug and amperage of a new chassis must match the receptacle and circuit already in the wall.

Replace the PTAC or Add Controls?

When Replacement Makes Sense

Replacement usually makes sense when:

• The compressor has failed or the unit leaks refrigerant.
• Coils or the base pan are badly corroded, common near the coast.
• The unit is near the end of its typical life and repairs are becoming frequent.
• You want to move from electric resistance heat to a heat pump to cut winter bills.

When replacing, measure the sleeve (width, height and depth), check the grille type and confirm voltage and plug. Sleeves smaller than the 42 x 16 in standard need a non-standard-size replacement chassis.

When Adding Controls Makes Sense

Adding controls usually makes more sense when the units still cool and heat properly but energy is wasted: rooms conditioned while empty, units left on after checkout, settings pushed to extremes, or staff with no way to see a fault until a guest complains.

Managing Many PTACs in a Hotel

A hotel with 100 rooms has 100 independent air conditioners, each controlled by whoever is in the room. Two practices make the biggest difference.

Occupancy-Driven Setbacks

• Unsold rooms: keep them at a wide setback (for example warmer in summer, cooler in winter) rather than off, so they do not get humid or freeze in extreme weather.
• Check-in: bring the room to a comfortable temperature shortly before the guest arrives, not hours earlier.
• Checkout: return the room to setback as soon as the guest leaves.
• Limits: cap how low or high guests can set the temperature to avoid the 60 °F room nobody is in.

Remote Monitoring

• One dashboard: see which units are running, in which mode and at what room temperature.
• Early fault spotting: spot a room that will not reach its setpoint, a sign of a failing chassis or a blocked filter, before the guest calls the front desk.
• Runtime-based maintenance: schedule filter cleaning by runtime rather than by calendar.

Where Sensibo Fits

Sensibo Sky and Sensibo Air are Wi-Fi controllers for air conditioners that are operated by an infrared (IR) remote. They let you schedule, adjust and monitor a unit from an app instead of the buttons on the chassis.

Many PTAC models come with or support an IR remote, but not all do, and some are controlled only by the unit's own panel or a wired wall thermostat. Check compatibility for your specific model before buying.

For properties managing dozens or hundreds of rooms, Airbend for hotels is Sensibo's platform for fleet-wide control, scheduling and monitoring across rooms.
